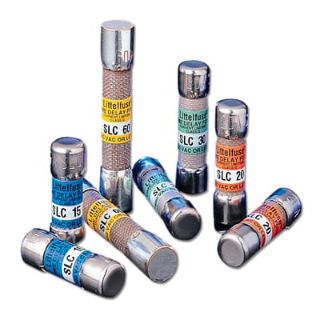

SLC020 LIT

UL CLASS G MEDIUM TIME DELAY 20A
Manufacturer: Littelfuse
Manufacturer part number: SLC020
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$17.54

Product Details

Brand Name

Littelfuse

Type

Class G

Description

UL CLASS G MEDIUM TIME DELAY 20A. The unique design of Littelfuse?s compact SLC series Class G fuses provide additional time-delay over competitive products which increases system reliability. Compact Class G fuses were the first fuse series to approach midget fuse dimensions and meet NEC requirements for branch-circuit protection. The unique dimensions of SLC series Class G fuses prevents insertion of lower voltage fuses in Class G fuse holders. The fuse?s varying length prevents insertion of higher ampere rated fuses in fuse holders designed for lower ampere ratings. Class CC fuses are replacing Class G fuses in many new designs. Class CC fuses? superior time delay plus higher voltage and interrupting ratings meet the needs of modern circuits. Littelfuse?s introduction of POWR-PRO? CCMR series fuses, with ratings up to 60 Amperes for providing branch circuit protection, are accelerating this trend. Safety: 100,000 A.I.R. ? Reliable interruption of all overcurrents up to 100,000 amperes. Current limiting design reduces damage to equipment caused by heating and magnetic effects of short circuit currents. Medium time-delay allows fuses to be sized closer to actual equipment requirements ? no need to greatly oversize to withstand harmless equipment or system surges. Reduced Downtime: Medium time-delay may reduce downtime caused by power surges or equipment demands.

Application

Branch Circuit

Standards

Standard 248-5 UL Listed/CSA

Features

Time-Delay

Specifications

Country of Origin:MX
Sub Brand:POWR-GARD SLC Series
