SLD 1350 MM 120X165 LOV

Name: SLD 1350 MM 120X165 LOV
Brand: Lovejoy
SKU: SLD 1350 MM 120X165 LOV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

69790498306

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Lovejoy®

Type

Self-Centering

Description

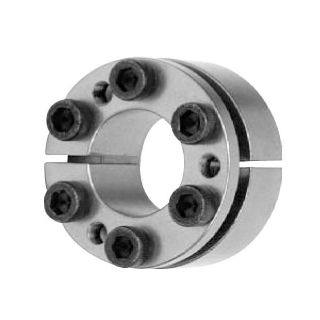

Lovejoy® Internal Shaft Locking Device, Self-Centering, Series: SLD 1350 Series, 120 mm Bore, 165 mm OD, 4.724 in Diameter Hub, 10652 ft-lb Transmissible Torque, 22626 psi Shaft Contact Pressure, 22771 psi Hub Contact, M12 Screw, 1.024 in Overall Length, Metallic Collar/Steel Screw, Silver

Standards

ECCN EAR99

Features

Versus traditional keyed connection
No Backlash due to fit tolerances
No impact effect from reversing loads
Ability to adjust axial position and angular timing
No fretting corrosion due to movement at the fit interface
Versus traditional interference fits
Easier and quicker to install
Higher contact pressures can transmit greater torques
Easy and quick to remove without damaging the shaft or hub even after years of service
Eliminate cost of machining keyways or splines
Reduce the shaft stress by removing keyways or splines
Eliminating keyways often allows the use of a smaller diameter shaft
Can place anywhere on shaft and allows for easy angular timing
Easy removal without damaging the shaft or hub means easier maintenance for your customer

Specifications

Bore Diameter:	120 mm
Country of Origin:	IT
Finish:	Silver
Hub Contact Pressure:	22771 psi
Hub Diameter:	4.724 in
Material:	Metallic Collar/Steel Screw
Outside Diameter:	165 mm
Overall Length:	1.024 in
Screw Size:	M12
Series:	SLD 1350 Series
Shaft Contact Pressure:	22626 psi
Transmissible Torque:	10652 ft-lb
