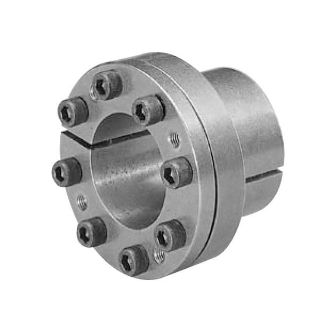

SLD 1900 MM 75X95 LOV

Name: SLD 1900 MM 75X95 LOV
Brand: Lovejoy
SKU: SLD 1900 MM 75X95 LOV
Price: 614.49 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

69790498466

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$614.49 / EA

Description

Brand Name

Lovejoy®

Type

Self-Centering

Description

Lovejoy® Internal Shaft Locking Device, Self-Centering, Series: SLD 1900 Series, 75 mm Bore, 95 mm OD, 2.953 in Diameter Hub, 4597 ft-lb Transmissible Torque, 10153 psi Shaft Contact Pressure, 11168 psi Hub Contact, M10 Screw, 2.362 in Overall Length, Metallic Collar/Steel Screw, Silver

Standards

ECCN EAR99

Features

Versus traditional keyed connection
No Backlash due to fit tolerances
No impact effect from reversing loads
Ability to adjust axial position and angular timing
No fretting corrosion due to movement at the fit interface
Versus traditional interference fits
Easier and quicker to install
Higher contact pressures can transmit greater torques
Easy and quick to remove without damaging the shaft or hub even after years of service
Eliminate cost of machining keyways or splines
Reduce the shaft stress by removing keyways or splines
Eliminating keyways often allows the use of a smaller diameter shaft
Can place anywhere on shaft and allows for easy angular timing
Easy removal without damaging the shaft or hub means easier maintenance for your customer

Specifications

Bore Diameter:	75 mm
Country of Origin:	IT
Finish:	Silver
Hub Contact Pressure:	11168 psi
Hub Diameter:	2.953 in
Material:	Metallic Collar/Steel Screw
Outside Diameter:	95 mm
Overall Length:	2.362 in
Screw Size:	M10
Series:	SLD 1900 Series
Shaft Contact Pressure:	10153 psi
Transmissible Torque:	4597 ft-lb
