SLD 350 MM 10X13 LOV

Name: SLD 350 MM 10X13 LOV
Brand: Lovejoy
SKU: SLD 350 MM 10X13 LOV
Price: 22.45 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

69790498503

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$22.45 / EA

Description

Brand Name

Lovejoy®

Type

Low Torque

Description

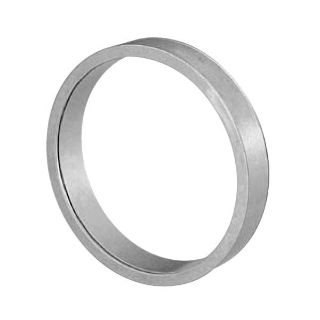

Lovejoy® Internal Shaft Locking Device, Low Torque, Series: SLD 350 Series, 10 mm Bore, 13 mm OD, 0.394 in Diameter Hub, 5.64 ft-lb Transmissible Torque, 16244 psi Shaft Contact Pressure, 14504 psi Hub Contact, Metallic Collar/Steel Screw, Silver

Standards

ECCN EAR99

Features

Versus traditional keyed connection
No Backlash due to fit tolerances
No impact effect from reversing loads
Ability to adjust axial position and angular timing
No fretting corrosion due to movement at the fit interface
Versus traditional interference fits
Easier and quicker to install
Higher contact pressures can transmit greater torques
Easy and quick to remove without damaging the shaft or hub even after years of service
Eliminate cost of machining keyways or splines
Reduce the shaft stress by removing keyways or splines
Eliminating keyways often allows the use of a smaller diameter shaft
Can place anywhere on shaft and allows for easy angular timing
Easy removal without damaging the shaft or hub means easier maintenance for your customer

Specifications

Bore Diameter:	10 mm
Country of Origin:	IT
Finish:	Silver
Hub Contact Pressure:	14504 psi
Hub Diameter:	0.394 in
Material:	Metallic Collar/Steel Screw
Outside Diameter:	13 mm
Series:	SLD 350 Series
Shaft Contact Pressure:	16244 psi
Transmissible Torque:	5.64 ft-lb
