SLM100C FSG

Product Details

Manufacturer:
Manufacturer part number:
SLM100C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

Federal Signal

Type

Low Profile Streamline Modular Multi-Functional

Description

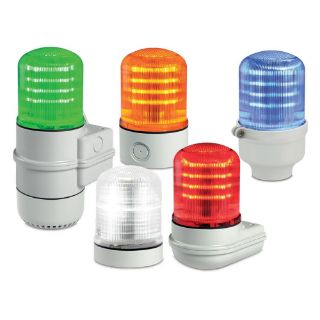

Model SLM100 offers a multi-functional LED beacon with high optical performance. Developed with a multiple input technology, Model SLM100 allows three separate light effects (steady, flashing or rotating) controllable via independent electric contacts. The steady light option offers a conspicuous and consistent light Signal. The flashing mode consists of a triple flash strobe effect ideal for all applications where an immediate attention gain is mandatory. And the rotating light offers a traditional rotating beacon effect without moving parts, which enhances product life. Model SLM100 body material is a self-extinguishing polycarbonate material with high impact and UV resistance suitable for outdoor applications.
Federal Signal StreamLine® Beacon, Low Profile Streamline Modular Multi-Functional, Series: SLM100, 12 to 24 VAC/VDC, 120 to 240 VAC, 70/100/150/300/360/510 mA, Cylindrical, LED Lamp, Clear, Flashing/Rotating/Steady Flash, 85 fpm Flash, 50000 hr Average Life, Specifications Met: UL/cUL/cULus Listed, CE Certified, Surface Mount, NEMA 4X/IP66, -22 to 122 deg F, Polycarbonate Housing, 3.9 in W x 3.9 in D x 4.23 in H

Application

Indoor/Outdoor

Standards

BAA Compliant | cULus File No. E162485 | RoHS Compliant

Features

  • PLC compatible with PNP or NPN connections
  • 300 mA at 12 VDC, 150 mA at 24 VDC, 510 mA at 12 VAC, 360 mA at 24 VAC, 100 mA at 120 VAC, 70 mA at 240 VAC
  • Three separate light effects

Specifications

Amperage Rating:70/100/150/300/360/510 mA
Average Life:50000 hr
Color:Clear
Country of Origin:IT
Dimensions:3.9 in W x 3.9 in D x 4.23 in H
Flash Rate:85 fpm
Flash Type:Flashing/Rotating/Steady
Housing Material:Polycarbonate
Lamp Type:LED
Mounting Type:Surface
NEMA Rating:NEMA 4X/IP66
Series:SLM100
Shape:Cylindrical
Specifications Met:UL/cUL/cULus Listed, CE Certified
Temperature Rating:-22 to 122 deg F
Voltage Rating:12 to 24 VAC/VDC, 120 to 240 VAC
