SNAP2182RA HWD

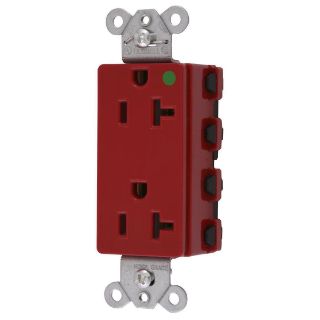

Picture of SNAP2182RA HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
SNAP2182RA
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$26.80 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Decorator Duplex Extra Heavy Duty Grounding Standard Screw Mount

Alternate Supplier #

Grainger - 31A332

Description

SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
Wiring Device-Kellems SNAP Connect® StyleLine® Straight Blade Receptacle, Decorator Duplex Extra Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, IP20 Enclosure, -40 to 75 deg C, Lead Wire Terminal, Nylon, Red, 3.28 in H x 1.64 in W x 1.1 in D Dimensions

Application

Commercial Construction, Healthcare Facilities, Hospitals, Labs and Long Term Care

Standards

CSA 22.2 No. 42 | Federal Specification W-C-596 | UL 498 | UL94 V-2 Flammability Rating

Features

  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Fully insulated design
  • Modular wiring system eliminates screw terminals
  • Speeds installation and trim out
  • Clear polycarbonate terminal housing to inspect contacts
  • Abuse resistant nylon for extra heavy use applications
  • Stainless steel auto ground clip

Specifications

Amperage Rating:20 A
Color:Red
Country of Origin:CN
Dimensions:3.28 in H x 1.64 in W x 1.1 in D
Enclosure:IP20
Grade:Hospital
Horsepower:1 hp
Material:Nylon
NEMA Rating:5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Connectorized
Voltage Rating:125 VAC
