SNAP8200RIGL HWD

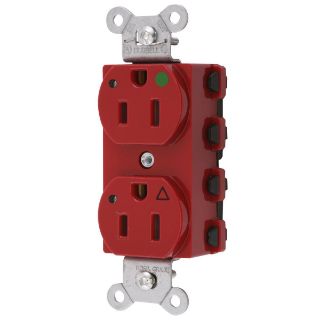

Picture of SNAP8200RIGL HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
SNAP8200RIGL
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$33.67 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Extra Heavy Duty Isolated Ground Standard Traditional

Description

SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.
Wiring Device-Kellems SNAPConnect® QUICKConnect® Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Isolated Ground Standard Traditional, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R, Hospital Grade, NEMA 5-15R Enclosure, -40 to 75 deg C, Lead Wire/Connectorized Terminal, Nylon, Red, 1.64 in W x 1.1 in D x 3.28 in H

Application

Commercial Construction, Healthcare Facilities, Hospitals, Outpatient Care Centers, Labs and Urgent Care Offices Applications

Standards

CSA 22.2 No. 42 | Federal Specification WC596 | UL 498 | UL94 V-2 Flammability Rating

Features

  • Modular wiring system eliminates screw terminals
  • Speeds installation and trim out
  • Clear polycarbonate terminal housing to inspect contacts
  • Abuse resistant nylon for extra heavy use applications
  • Stainless steel auto ground

Specifications

Amperage Rating:15 A
Color:Red
Country of Origin:CN
Dimensions:1.64 in W x 1.1 in D x 3.28 in H
Enclosure:IP20
Grade:Hospital
Horsepower:1/2 hp
Material:Nylon
NEMA Rating:NEMA 5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Lead Wire
Voltage Rating:125 VAC
