SNAP8300ITR HWD

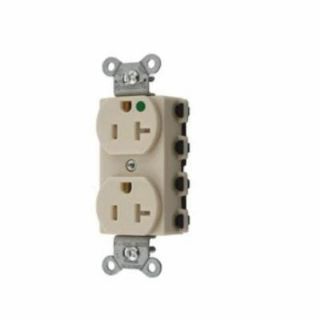

Name: SNAP8300ITR HWD
Brand: Hubbell Wiring Device-Kellems
SKU: SNAP8300ITR HWD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

SNAP8300ITR

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Duplex Tamper-Resistant

Description

SNAPConnect® devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnect® modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed and the terminal is simply snapped into the SNAPConnect® device for a consistent connection every time. Once installed, SNAPConnect® modular design enables simple device change out by maintenance personnel.

Wiring Device-Kellems SNAP Connect® Straight Blade Receptacle, Duplex Tamper-Resistant, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, IP20 Enclosure, -40 to 75 deg C, Lead Wire Terminal, Nylon, Ivory, 3.28 in H x 1.64 in W x 0.86 in D Dimensions

Application

Hospitals, Healthcare Facilities, Outpatient Care Centers, Urgent Care Offices, Labs and Commercial Construction

Standards

UL 498 File No. E2186 | CSA C22.2 No. 42 File No. 285 | Federal Specification W-C-596

Features

Abuse resistant nylon for extra heavy use applications
Stainless steel autoground clip
SNAPConnect® eliminates exposed live terminals on the device
Extra heavy duty receptacle
Audible SNAP, indicates solid connection
Reduces installation time
Fully insulated design
Nylon top, RTP base, brass by pass power contacts, wire clamps, mounting strap, lime terminal screws, ground screw and center assembly rivet, stainless steel automatic self-grounding clip, steel zinc plated flat head mounting screws, steel nickel finish ground tension clips
Receptacle certified for current interrupting at full rated current
Withstands 2000 VAC minimum dielectric voltage
5 deg C maximum continuous and -40 deg C (without impact) operating temperature rating

Specifications

Amperage Rating:	20 A
Color:	Ivory
Country of Origin:	US
Dimensions:	3.28 in H x 1.64 in W x 0.86 in D
Enclosure:	IP20
Grade:	Hospital
Horsepower:	1 hp
Material:	Nylon
NEMA Rating:	NEMA 5-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Lead Wire
Voltage Rating:	125 VAC
