SNAP8300USBI HWD

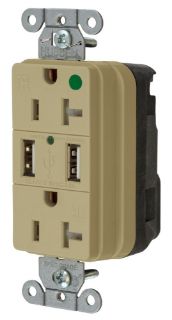

Picture of SNAP8300USBI HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
SNAP8300USBI
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Decorator Duplex Extra Heavy Duty Grounding Tamper-Resistant Standard

Description

Wiring Device-Kellems SNAPConnect® Style Line® USB Charger Receptacle, Decorator Duplex Extra Heavy Duty Grounding Tamper-Resistant Standard, 20 A at 125 VAC, 1 hp, 2500 W Electrical Rating, 1, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Type-A USB 2.0 USB, 2 USB Quantity, 3 A at 5 VDC USB, 3.28 in L x 1.77 in W x 1.54 in H Size, Snap/Screw Connection, Threaded Mounting, Hospital Grade, Composite/RTP, Ivory, Environmental Conditions: -40 to 75 deg C Operating Temperature

Application

Dry Locations, Indoor, Universities, Hotel, Medical Lab, Hospital, Classroom, Restaurant, Airport, Industrial, Commercial and Residential Applications

Standards

cULus Listed | cETLus Listed | UL 1310 | UL 498 | CSA Certified | UL 94 V-2 Flammability Rated | ARRA Compliant | Buy American Act Compliant

Features

  • 3 A of USB capacity charge multiple portable devices simultaneously
  • Green LED indicator lights when charging
  • Heavy duty stainless steel USB ports, rated for minimum 10000 cord insertions and removals
  • Works with standard SNAPConnect® receptacle pigtailed connector
  • Indoor dry unless protected by additional means

Specifications

Color:Ivory
Connection:Snap/Screw
Country of Origin:CN
Electrical Ratings:20 A at 125 VAC, 1 hp, 2500 W
Environmental Conditions:-40 to 75 deg C Operating Temperature
Grade:Hospital
Material:Composite/RTP
Mounting:Threaded
Number of Poles:2
Number of Wires:3
Phase:1
Size:3.28 in L x 1.77 in W x 1.54 in H
USB Quantity:2
USB Rating:3 A at 5 VDC
USB Type:Type-A USB 2.0
Wire Size:14 to 10 AWG
