SNV140-F-L FAG

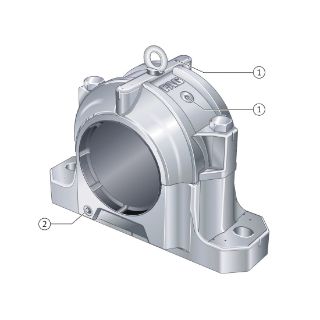

Split plummer block housings, the housing body is split into an upper section and a lower section. This gives significantly simpler mounting and maintenance. The two halves of a housing form a matched pair and must not be interchanged with parts from other housings.

FAG Split Plummer Block Housing, Series: SNV, Two-Bolt Base Mounting, 95 mm Base to Bore Centerline, 315 mm Overall Length, 135 mm Overall Width, 183 mm Overall Height, Compatible Bore Diameter: 60 mm, 65 mm, 70 mm, 80 mm, 90 mm, Compatible Bearing Type: Spherical Roller Bearing, 260 mm Bolt Center-to-Center Length, 90 mm Base Width, Flake Graphite Cast Iron
