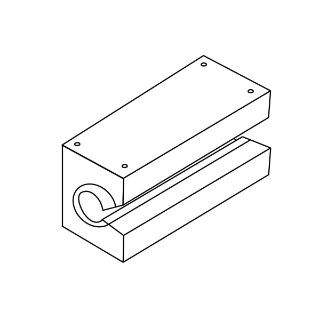

SPB8OPN-MOD THO

Name: SPB8OPN-MOD THO
Brand: Thomson Industries
SKU: SPB8OPN-MOD THO
Price: 282.27 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

SPB8OPN-MOD

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$282.27 / EA

Description

Brand Name

Thomson®

Type

Non-Adjustable Open

Description

The Super Ball Bushing® bearing has been the industry standard for self-aligning linear bearings for over twenty years. This bearing provides three times the load capacity or 27 times the travel life of conventional linear bearings. Besides the dramatic increase in load capacity, the Super Ball Bushing® bearing is self-aligning, lightweight and adjustable with a low coefficient of friction. It is a quick and easy replacement for high friction plain bearings. The wear-resistant, engineered-polymer retainers and outer sleeves reduce inertia and noise in critical, high speed applications.

Thomson® Super Ball Bushing® Linear Bearing Pillow Block, Non-Adjustable Open, Series: SPB, 1/2 in Shaft Dia, 1.12 in Height, 1-1/2 in Length, 120 lb Dynamic, Aluminum Alloy Bearing, 3 m/s Maximum, Oil Lubrication, 185 deg F, Black Anodized

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

A self-aligning capability up to 0.5 deg compensates for inaccuracies in base flatness or carriage machining
RoundRail™ advantage combined with the self-aligning feature, eliminating the need for derating factors commonly required for linear guides
Travel speeds up to 10 ft/s without a reduction in load capacity
Lightweight, wear-resistant, engineered polymer retainers and outer sleeves that reduce inertia and noise
Radially floating bearing plates when installed in an adjustable housing, the Super Ball Bushing® bearing may be adjusted to a specific diametrical fit-up for accurate and repeatable movement
A constant coefficient of friction as low as 0.001
The use of smaller, less expensive drive motors, belts, linkages, gears and ball screws, when replacing high friction plain bearings
Greater ball to bearing plate contact provides the increase in three times load capacity or travel life
Zero clearance fit
Smooth, quiet operation
Open pillow blocks are for continuous supported shafting
For SSRA linear race or class L shafting
Ball bushing bearings are included and factory installed in each pillow block
For 1DA08JOO single side-mounted linear guide

Specifications

Bearing Material:	Aluminum Alloy
Country of Origin:	MX
Finish:	Black Anodized
Height:	1.12 in
Length:	1-1/2 in
Load Capacity:	120 lb Dynamic
Lubrication Type:	Oil
Maximum Speed:	3 m/s
Series:	SPB
Shaft Diameter:	1/2 in
Temperature Rating:	185 deg F
