SR12L48 THO

The low-cost way of mounting Thomson® 60 Case® shafts. They are standard, available from stock and simplify shaft mounting. In addition to other benefits, they eliminate many problems encountered in designing and manufacturing shaft-supporting devices. These versatile mounts can be used horizontally or vertically and in many different arrangements. Shaft support rails are available without predrilled holes (SR) or predrilled (SR-PD) shaft rails to support 1/2 in through 2 in Dia shafts are available in standard 24, 48 and 72 in L. Where shorter lengths are needed, rails are easily cut to length. for longer shafts, they can be mounted end to end, using shims or grout, if necessary, to compensate for slight variation within manufacturing tolerance. Thomson® offers shaft support rails with predrilled holes to simplify shaft mounting.

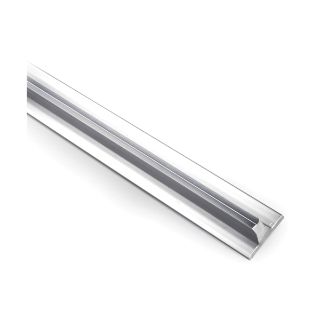

Thomson® Shaft Support Rail, Standard Profile Type SR, 3/4 in Shaft Diameter, 1-1/2 in Base to Center Height of Shaft, 48 in Length, 1-3/4 in Base Width, 1/4 in Base Thickness, #10 Bolt, For Use With: 60 Case® LinearRace® Shaft, Aluminum
