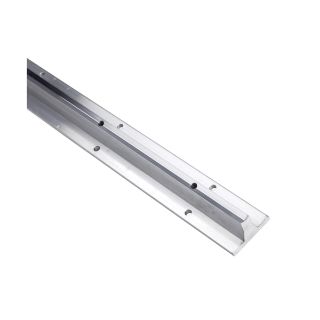

SRM16T2 THO

The low-cost way of mounting Thomson® 60 Case® shafts. They are standard, available from stock and simplify shaft mounting. In addition to many other benefits, they eliminate many problems encountered in designing and manufacturing shaft supporting devices. These versatile mounts can be used horizontally or vertically and in many different arrangements. Shaft support rails are available without predrilled holes (SRM) or predrilled (SRMTx) shaft rails to support 12 to 40 mm Dia shafts are available in standard 600 mm where shorter lengths are needed, rails are easily cut to length. for longer shafts, they can be mounted end to end, using shims or grout, if necessary, to compensate for slight variation within manufacturing tolerance. Thomson® offers shaft support rails with predrilled holes to simplify shaft mounting.

Thomson® Shaft Support Rail, Standard Profile Type SRMTx, 16 mm Shaft Diameter, 30 mm Base to Center Height of Shaft, 600 mm Length, 48 mm Base Width, 5 mm Base Thickness, M5 Bolt, For Use With: 60 Case® LinearRace® Shaft, 150 mm L x 33 mm W Mounting Hole Center to Center, Aluminum
