SS102G BOS

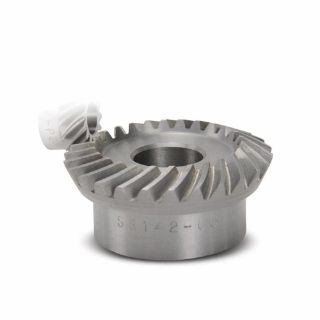

Boston Gear® SS102-G Spiral Bevel Gear Without Keyway and Setscrew, 10 Diametral Pitch, Right Hand Rotation, 20 deg Pressure Angle, 34 Teeth, 3.4 in Pitch Dia, 0.57 in Face, 1 in Bore Dia, Steel
Manufacturer: Boston Gear
Manufacturer part number: SS102-G
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$145.86

Product Details

Brand Name

Boston Gear®

Description

Boston bevel gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Bevel gears are similar to miter gears except bevel gears are used for 1.5:1 to 6:1 ratios. Straight tooth bevel gears are cut with a generated "coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth bevel gears are better suited for higher speeds and high torque applications.
Boston Gear® Spiral Bevel Gear Without Keyway and Setscrew, 1 in Bore Dia, 3.45 in Outside Dia, 2:1 Gear Ratio, 34 Teeth, 10 Diametral Pitch, 3.4 in, 0.57 in Face Width, Right Hand Direction of Rotation, 2 in Hub Dia, 3/4 in Hub Projection, 20 deg Pressure Angle, 35 deg Spiral Angle, Steel

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Features

Unhardened teeth offer versatility

Specifications

Bore Diameter:1 in
Country of Origin:US
Diametral Pitch:10
Direction of Rotation:Right Hand
Face Width:0.57 in
Gear Ratio:2:1
Hub Diameter:2 in
Hub Projection:3/4 in
Material:Steel
Number of Teeth:34
Outside Diameter:3.45 in
Pitch Diameter:3.4 in
Pressure Angle:20 deg
Spiral Angle:35 deg
