Home / SS6003 ZZ FM222 BLT

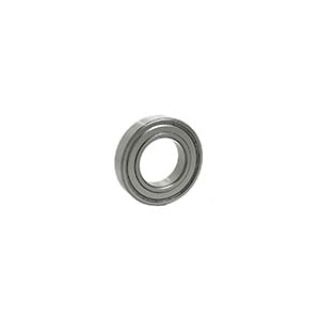

SS6003 ZZ FM222 BLT

Product Details

Manufacturer:
Manufacturer part number:
SS6003 ZZ FM222
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

TRITAN®

Description

High quality AISI 440C stainless steel bearings resist corrosion and provide exceptional hardness and strength. Features 304 stainless cages and shields, grooved raceways on inner and outer rings sustain moderate axial loads in both directions and radial loads. Available open, sealed (2RS) or shielded (ZZ). ZZ and 2RS are available pre-lubricated with FM222 H1 food grade grease. In addition to our standard items and configurations listed below, BL® excels at manufacturing customized bearings to meet specific application requirements.
TRITAN® Deep Groove Ball Bearing, Series: 60 Series, 17 mm Bore, 35 mm OD, 1 Rows, 10 mm Width, Double Shield Closure, 1080 lb Load, Stainless Steel Bearing, 304 Stainless Steel Cage, 13000 rpm Grease/26000 rpm Oil Maximum

Standards

ABEC 1 | AISI 440C | FDA Approved

Features

1080 lb dynamic/720 lb static load

Specifications

Bearing Material:Stainless Steel
Bore Diameter:17 mm
Cage Material:304 Stainless Steel
Closure Type:Double Shield
Load Capacity:1080 lb
Maximum Speed:13000 rpm Grease/26000 rpm Oil
Number of Rows:1
Outside Diameter:35 mm
Series:60 Series
Width:10 mm
