SSFR4 2RS/Q BLT

Name: SSFR4 2RS/Q BLT
Brand: Bearings Limited
SKU: SSFR4 2RS/Q BLT
Availability: OutOfStock

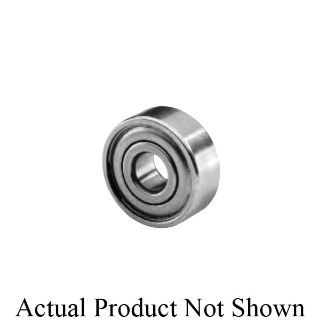

Actual Product May Vary From Image

Product Details

Manufacturer:

Bearings Limited

Manufacturer part number:

SSFR4 2RS/Q

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

TRITAN®

Description

Deep groove ball bearings incorporate grooved raceways on both the inner ring and outer ring, which enable them to sustain moderate axial loads in both directions in addition to radial loads. Balls are separated by steel cages, permitting high speed operation.

TRITAN® Miniature Deep Groove Radial Ball Bearing, Series: SSFR, 1/4 in Bore, 5/8 in OD, 1 Rows, 0.196 in Width, 0.69 in OD Diameter Flange, 0.42 in Flange Thickness, Double Seal Closure, 335 N Load, Stainless Steel Bearing, Rubber Seal, Steel Cage, 44000 rpm Grease Maximum, -20 to 212 deg F

Application

Actuators, Disk Drives, Power Tools, Computers, Dental Hand Pieces, Servomotors, Encoders, Tape Guides, Gearheads, Medical Devices, Differentials and Telecommunication Equipment

Standards

AFBMA Standard | AISI 440C

Features

335 N dynamic/139 N static load

Specifications

Bearing Material:	Stainless Steel
Bore Diameter:	1/4 in
Cage Material:	Steel
Closure Type:	Double Seal
Flange Diameter:	0.69 in OD
Flange Thickness:	0.42 in
Load Capacity:	335 N
Maximum Speed:	44000 rpm Grease
Number of Rows:	1
Outside Diameter:	5/8 in
Seal Material:	Rubber
Series:	SSFR
Temperature Rating:	-20 to 212 deg F
Width:	0.196 in
