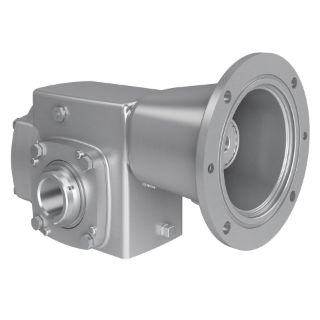

SSHERA35PS 19.93 56C 1.125 HUB

Name: SSHERA35PS 19.93 56C 1.125 HUB
Brand: Hub City
SKU: SSHERA35PS 19.93 56C 1.125 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City

Manufacturer part number:

0250-56940

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction High Efficiency Right Angle

Description

Hub City® CleanLine™ Helical Hypoid Reducer, Double Reduction High Efficiency Right Angle, Series: SSHERA®35, 19.93:1 Gear Ratio, 1.7 hp, C-Face Coupling Input, Hollow Bore Output, 5/8 in Dia Input, 1-1/8 in Dia Output, 87.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1100 in-lb, 2.509 in Centre Distance, 3/16 x 3/32 in Input, 1/4 x 1/8 in Output Keyway, 90 % Efficiency, CCW/CW Rotation, PAG Synthetic Oil Lubrication, 316 Stainless Steel, Polished, 7.2 in L x 6 in W x 5.93 in H

Application

Food Industry and Starch Inlet Conveyor

Standards

BISSC Certified | FDA Approved | HACCP Compliant | IP69K | USDA/NSF H1

Features

90% efficiency up to 2x torque
Two sizes can replace up to six sizes of worm speed reducers
Machine polished 316 stainless steel housing
Rolling action gearing (helical and hypoid)
Oversized bearings
FKM seals
Bronze bushing quill liner
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	2.509 in
Country of Origin:	US
Dimensions:	7.2 in L x 6 in W x 5.93 in H
Efficiency:	90 %
Finish:	Polished
Gear Ratio:	19.93:1
Horsepower:	1.7 hp
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Coupling
Keyway Size:	3/16 x 3/32 in Input, 1/4 x 1/8 in Output
Lubrication Type:	PAG Synthetic Oil
Material:	316 Stainless Steel
Output Maximum Speed:	87.8 rpm
Output Size:	1-1/8 in Dia
Output Type:	Hollow Bore
Rotation Type:	CCW/CW
Series:	SSHERA®35
Torque Rating:	1100 in-lb
