SSHERA45AS 7.80 (32) 1.438 HUB

Name: SSHERA45AS 7.80 (32) 1.438 HUB
Brand: Hub City
SKU: SSHERA45AS 7.80 (32) 1.438 HUB
Availability: OutOfStock

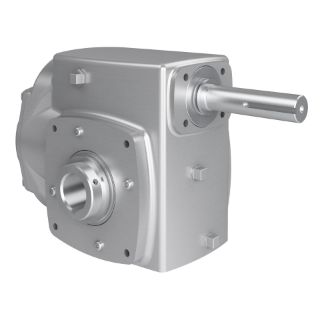

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City

Manufacturer part number:

0250-57665

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction High Efficiency Right Angle

Description

Hub City® CleanLine™ Helical Hypoid Reducer, Double Reduction High Efficiency Right Angle, Series: SSHERA®45, 7.80:1 Gear Ratio, 8-1/2 hp, Shaft Input, Hollow Bore Output, 0.874 in Dia x 4 in L Input, 1.438 in Dia Output, 224.4 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2149 in-lb, 3.263 in Centre Distance, 3/16 x 3/32 in Input, 3/8 x 1/8 in Output Keyway, 90 % Efficiency, CCW/CW Rotation, PAG Synthetic Oil Lubrication, 316 Stainless Steel, Polished, 8.02 in L x 6.75 in W x 7.14 in H

Application

Food Industry and Starch Inlet Conveyor

Standards

BISSC Certified | FDA Approved | HACCP Compliant | IP69K | USDA/NSF H1

Features

90% efficiency up to 2x torque
Two sizes can replace up to six sizes of worm speed reducers
Machine polished 316 stainless steel housing
Rolling action gearing (helical and hypoid)
Oversized bearings
FKM seals
Bronze bushing quill liner
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	3.263 in
Country of Origin:	US
Dimensions:	8.02 in L x 6.75 in W x 7.14 in H
Efficiency:	90 %
Finish:	Polished
Gear Ratio:	7.80:1
Horsepower:	8-1/2 hp
Input Maximum Speed:	1750 rpm
Input Size:	0.874 in Dia x 4 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 3/8 x 1/8 in Output
Lubrication Type:	PAG Synthetic Oil
Material:	316 Stainless Steel
Output Maximum Speed:	224.4 rpm
Output Size:	1.438 in Dia
Output Type:	Hollow Bore
Rotation Type:	CCW/CW
Series:	SSHERA®45
Torque Rating:	2149 in-lb
