SSHERA45PK 11.36 182TC KLS HUB

Name: SSHERA45PK 11.36 182TC KLS HUB
Brand: Hub City
SKU: SSHERA45PK 11.36 182TC KLS HUB
Availability: OutOfStock

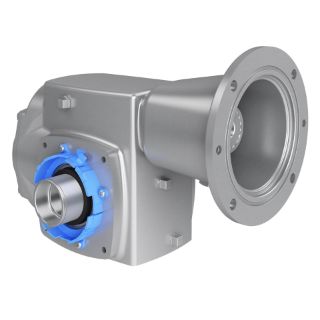

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City

Manufacturer part number:

0250-61202

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Double Reduction High Efficiency Right Angle

Description

The HubLoc® bushing system creates a keyless, backlash-free mechanical interference fit that eliminates the micro movement that causes fretting and cold welding. It is a self-centering design that achieves optimum concentricity and eliminates oscillation in shaft mounted applications.

Hub City® CleanLine™ Helical Hypoid Reducer, Double Reduction High Efficiency Right Angle, Series: SSHERA®45, 11.36:1 Gear Ratio, 7.06 hp, C-Face Coupling Input, HubLoc® Output, 1-1/8 in Dia Input, 154 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2600 in-lb, 3.263 in Centre Distance, 1/4 x 1/8 in Input Keyway, 90 % Efficiency, CCW/CW Rotation, PAG Synthetic Oil Lubrication, 316 Stainless Steel, Polished, 8.02 in L x 6.75 in W x 7.14 in H

Application

Food Industry and Starch Inlet Conveyor

Standards

BISSC Certified | FDA Approved | HACCP Compliant | IP69K | USDA/NSF H1

Features

90% efficiency up to 2x torque
Two sizes can replace up to six sizes of worm speed reducers
Machine polished 316 stainless steel housing
Rolling action gearing (helical and hypoid)
Oversized bearings
FKM seals
Bronze bushing quill liner
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	3.263 in
Dimensions:	8.02 in L x 6.75 in W x 7.14 in H
Efficiency:	90 %
Finish:	Polished
Gear Ratio:	11.36:1
Horsepower:	7.06 hp
Input Maximum Speed:	1750 rpm
Input Size:	1-1/8 in Dia
Input Type:	C-Face Coupling
Keyway Size:	1/4 x 1/8 in Input
Lubrication Type:	PAG Synthetic Oil
Material:	316 Stainless Steel
Output Maximum Speed:	154 rpm
Output Type:	HubLoc®
Rotation Type:	CCW/CW
Series:	SSHERA®45
Torque Rating:	2600 in-lb
