SSRIF418 ZZEE/Q BLT

Name: SSRIF418 ZZEE/Q BLT
Brand: Bearings Limited
SKU: SSRIF418 ZZEE/Q BLT
Availability: OutOfStock

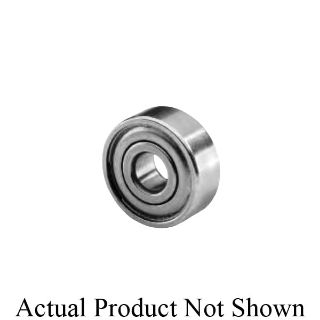

Actual Product May Vary From Image

Product Details

Manufacturer:

Bearings Limited

Manufacturer part number:

SSRIF418 ZZEE/Q

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

TRITAN®

Type

Instrument Type

Description

Deep groove ball bearings incorporate grooved raceways on both the inner ring and outer ring, which enable them to sustain moderate axial loads in both directions in addition to radial loads. Balls are separated by steel cages, permitting high speed operation.

TRITAN® Miniature Deep Groove Radial Ball Bearing, Instrument Type, Series: SSRI, 1/8 in Bore, 1/4 in OD, 1 Rows, 0.1094 in Width, 0.296 in OD Diameter Flange, 0.31 in Flange Thickness, Double Shield Closure, 64 N Load, Stainless Steel Bearing, Steel Cage, 59000 rpm Grease Maximum, -20 to 212 deg F

Application

Actuators, Disk Drives, Power Tools, Computers, Dental Hand Pieces, Servomotors, Encoders, Tape Guides, Gearheads, Medical Devices, Differentials and Telecommunication Equipment

Standards

AFBMA Standard | AISI 440C

Features

64 N dynamic/22 N static load

Specifications

Bearing Material:	Stainless Steel
Bore Diameter:	1/8 in
Cage Material:	Steel
Closure Type:	Double Shield
Flange Diameter:	0.296 in OD
Flange Thickness:	0.31 in
Load Capacity:	64 N
Maximum Speed:	59000 rpm Grease
Number of Rows:	1
Outside Diameter:	1/4 in
Series:	SSRI
Temperature Rating:	-20 to 212 deg F
Width:	0.1094 in
