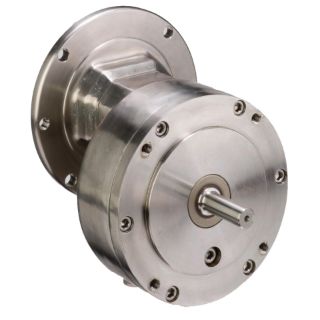

SSRM1Q-4.000-140TC-140TC HUB

Name: SSRM1Q-4.000-140TC-140TC HUB
Brand: Hub City
SKU: SSRM1Q-4.000-140TC-140TC HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City

Manufacturer part number:

0270-02405

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Parallel Reducer

Description

Hub City® CleanLine™ Helical Ratio Multiplier, Parallel Reducer, Series: SSRM1, 4:1 Gear Ratio, 2.91 hp Input, C-Face Quill Input, C-Face Shaft Output, 7/8 in Dia Input, 7/8 in Dia Output, 438 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 419 in-lb Output, 1.909 in Centre Distance, 3/16 x 3/32 in Input/Output Keyway, Synthetic Oil Lubrication, Surface Mount, 316 Stainless Steel, 7.16 in L x 6.5 in W x 8.41 in H

Standards

BISSC Certified | HACCP Compliant | IP69K | USDA H1 Compliant

Features

Can be used as reducer or increaser
303 stainless steel shafts
Use between gear drive and motor to gain additional gear reduction
Configured for severe high pressure and chemical washdown environments
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	1.909 in
Country of Origin:	US
Dimensions:	7.16 in L x 6.5 in W x 8.41 in H
Gear Ratio:	4:1
Horsepower:	2.91 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/16 x 3/32 in Input/Output
Lubrication Type:	Synthetic Oil
Material:	316 Stainless Steel
Mounting Type:	Surface
Output Maximum Speed:	438 rpm
Output Size:	7/8 in Dia
Output Type:	C-Face Shaft
Series:	SSRM1
Torque Rating:	419 in-lb Output
