SST-EDN-1-C2 WOO

Name: SST-EDN-1-C2 WOO
Brand: Molex/Woodhead
SKU: SST-EDN-1-C2 WOO
Availability: OutOfStock

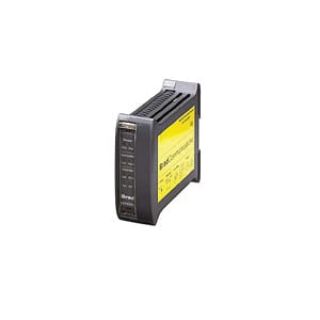

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

SST-EDN-1-C2

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Aero-Motive®

Type

Remote DeviceNet Scanner

Description

Brad® automation products give the designer and users of a DeviceNet™ system a complete communication and connectivity solution - from scanner through media infrastructure to IP67 input/output connections and diagnostics. No other supplier provides a comprehensive backbone of connectivity while giving you the power to choose other elements of the control system. You select which control engine you want, whether it be PC or PLC based. You choose which control architecture - centralized or distributed - which type of motor controllers, valve banks or sensors you want. Brad® insures connectivity to all these devices.

Aero-Motive® SST™ PAC/PLC Communication Module, Remote DeviceNet Scanner, Series: 112034, 10 to 30 VDC, 0.33 A, 1 MBaud, DeviceNet 125, 250, 500 kBaud Communication Rate, 5-Pin DeviceNet Terminal, 0 to 50 deg C

Application

Used as remote ethernet to DeviceNet™ scanner, IO control, protocol gateway

Standards

China RoHS Compliant | CE Certified | ODVA Certified | IEC 61000-6-2

Features

High performance DeviceNet™ protocol executed via up to 16 remote DeviceNet™ scanners
User interface DLL/API is completely backward compatible with existing applications and local DeviceNet™ interface cards
Diagnostic LEDs
UCMM (unconnected message manager) capable, group 1, 2 and 3 dynamic explicit connections supported
Provides simultaneous execution of group 2 client (master) and server (slave) operation
125, 250 and 500 kbaud supports all DeviceNet™ standard baud rates
Supports poll, strobe, change of state (COS) and cyclic input/output messaging
Provides client (master) explicit messaging to slave devices
Backward compatible DLL preserves existing investment
DIN rail mount allows distribution to machine level
Frees up PC slots by placing scanner cards remotely
Manage your DeviceNet™ application across an Ethernet LAN
Capable of updating DeviceNet™ input/output faster than a PCI version
Reduce infrastructure costs by using cheaper Ethernet cable and fewer or less expensive PCs
1 Mbaud (CAN only), DeviceNet™ 125, 250, 500 kbaud communication rate

Specifications

Amperage Rating:	0.33 A
Communication Rate:	1 MBaud, DeviceNet 125, 250, 500 kBaud
Country of Origin:	CA
Series:	112034
Temperature Rating:	0 to 50 deg C
Terminal Type:	5-Pin DeviceNet
Voltage Rating:	10 to 30 VDC
