SSUTFB12 THO

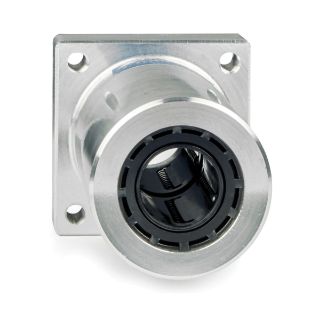

Picture of SSUTFB12 THO
Actual Product May Vary From Image

Product Details

Manufacturer:
Thomson Industries
Manufacturer part number:
SSUTFB12
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$394.61 / EA

Description

Brand Name

Thomson®

Type

Non-Adjustable Closed Twin

Description

The Super Smart Ball Bushing® bearing family represents a major advancement in linear bearing technology worldwide. These patented and universally self-aligning bearings offer twice the load capacity or eight times the travel life of our industry standard Super Ball Bushing® bearing. To minimize installation time and cost, the Super Smart Ball Bushing® bearing can be ordered factory-installed in an industry standard single or twin pillow block.
Thomson® Super Smart Ball Bushing® Linear Bearing Flanged Pillow Block, Non-Adjustable Closed Twin, Series: SSUTFB, 3/4 in Shaft Dia, 1-3/4 in Outside Dia, 2.38 in Height, 2.38 in Length, 3.95 in Width, 2260 lb Dynamic, Steel Bearing, 185 deg F

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

  • A precision, super finished, dual track bearing plate for optimum system smoothness and performance
  • Longer travel life and minimal machine downtime when replacing conventional linear bearings or the industry standard Super Ball Bushing® bearing
  • RoundRail™ advantage combined with universal self-alignment, eliminating the need for derating factors commonly required when using linear guides
  • A coefficient of friction as low as 0.001 and allows the use of smaller, less expensive motors, belts, gears and ball screws when replacing high-friction, plain bearings
  • Double-lip integral wipers that keep out dirt while retaining lubrication and travel life is maximized
  • Steady state travel speeds up to 10 ft/s and accelerations to 450 ft/s without the use of derating factors
  • Universal self-alignment
  • The bearing plate is designed to rock 0.5 deg about the hardened precision ground outer ring
  • The second key design feature of the Super Smart Ball Bushing® bearing plate is its ability to roll
  • The shape formed by the rock and roll features allows the Super Smart Ball Bushing® bearing plate to rotate about its center
  • The Super Smart Ball Bushing® bearing provides twice the load capacity of the industry standard Thomson® Super Ball Bushing® bearing and six times the load capacity of conventional linear bearings
  • The Super Smart Ball Bushing® bearing provides eight times the travel life of the industry standard Thomson® Super Ball Bushing® bearing and 216 times the travel life of conventional linear bearings
  • Closed pillow blocks are for end supported shafting
  • For class L shafting

Specifications

Bearing Material:Steel
Height:2.38 in
Length:2.38 in
Load Capacity:2260 lb Dynamic
Outside Diameter:1-3/4 in
Series:SSUTFB
Shaft Diameter:3/4 in
Temperature Rating:185 deg F
Width:3.95 in
