SSW244 15/1 A WR 182TC HUB

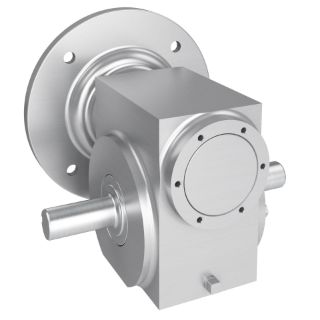

Picture of SSW244 15/1 A WR 182TC HUB
Actual Product May Vary From Image

Product Details

Manufacturers:
Hub City , Hub City
Manufacturer part number:
0270-08675
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.
Hub City® CleanLine™ Hub3® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: SSW240, 15:1 Gear Ratio, 2.765 hp Input, C-Face Quill Input, Shaft Output, 1-1/8 in Dia Input, 1.125 in Dia x 3.03 in L Output, 116.7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1318 in-lb Output, 2.38 in Centre Distance, 3/16 x 3/32 in Input, 1/4 x 1/8 in Output Keyway, 88.2 % Efficiency, PAG Synthetic Oil Lubrication, 316 Stainless Steel, Polished, 10.27 in W

Application

Agriculture, Food Handling and Processing, Grain Handling, Packaging Machinery, Cement and Asphalt, Poultry and Meat, Seafood and Fish, Cereal and Grain, Baking, Beverage, Pharmaceutical Industry, Chemical Processing Industry, Petroleum Processing Industry, Tobacco Industry, Carwash Industry, Mixer Industry and Pump Industry

Standards

AGMA Class 1 | BISSC Certified | CFR 212 Section 178.3570 | FDA Approved | IP69K | NSF/ANSI/3-A 14159-1-2002

Features

  • Machine polished 316 stainless steel housing and rounded caps for easy cleanability
  • Universal mounting dimensions
  • Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved
  • Advanced design
  • Dual bolt patterns top and bottom mounting surfaces for universal mounting capability

Specifications

Centre Distance:2.38 in
Country of Origin:US
Dimensions:10.27 in W
Efficiency:88.2 %
Finish:Polished
Gear Ratio:15:1
Horsepower:2.765 hp Input
Input Maximum Speed:1750 rpm
Input Size:1-1/8 in Dia
Input Type:C-Face Quill
Keyway Size:3/16 x 3/32 in Input, 1/4 x 1/8 in Output
Lubrication Type:PAG Synthetic Oil
Material:316 Stainless Steel
Output Maximum Speed:116.7 rpm
Output Size:1.125 in Dia x 3.03 in L
Output Type:Shaft
Series:SSW240
Torque Rating:1318 in-lb Output
