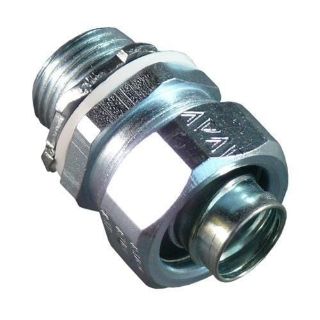

Picture of ST75 APN
Actual Product May Vary From Image

ST75 APN

Appleton® ST-75 Liquid Tight Oiltight Raintight Conduit Connector With Plain Throat, 3/4 in Trade, Straight, Steel, Zinc Electroplated
Manufacturer: Appleton
Manufacturer part number: ST-75
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
25 25 2
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$11.68

Product Details

Brand Name

Appleton®

Type

Liquid Tight Oiltight Raintight

Description

Appleton® Conduit Connector, Liquid Tight Oiltight Raintight, Series: ST Series, 3/4 in, Straight, For Use With: Liquid Tight Flexible Metallic Conduit, Steel, Zinc Electroplated, 1-1/2 in L x 1-1/2 in H

Application

Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment Installation

Standards

UL 514B | UL File No. E14814 | CSA C22.2 No. 18.3 | CSA 065178 | Class I, Div 2 | RoHS Compliant

Features

  • Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
  • Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
  • Polypropylene sealing ring with locknut standard
  • Full, machined tapered threads (NPT)
  • Compact design with small turning radius
  • Seals out oil, water, dust, dirt and fumes
  • Suitable for wet locations
  • Steel compression nut

Specifications

Angle:Straight
Country of Origin:MX
Dimensions:1-1/2 in L x 1-1/2 in H
Finish:Zinc Electroplated
Material:Steel
Series:ST Series
Suitable For Use With:Liquid Tight Flexible Metallic Conduit
Trade Size:3/4 in
