STB150SR APN

Name: STB150SR APN
Brand: Appleton
SKU: STB150SR APN
Price: 165.47 USD
Availability: InStock

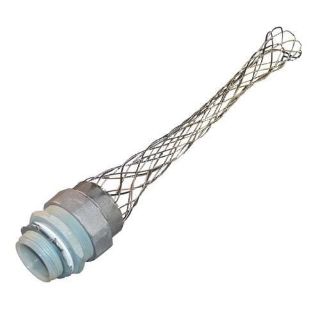

Appleton® STB-150SR Insulated Throat Oiltight Raintight Liquid Tight Conduit Connector With Stainless Steel Wire Mesh Strain Relief, 1-1/2 in Trade, 1.87 to 1.9 in Cable Openings, For Use With Liquid Tight Flexible Metallic Conduit

Manufacturer: Appleton

Manufacturer part number: STB-150SR

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	1
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$165.47

Qty:

Product Details

Brand Name

Appleton®

Type

Insulated Throat Oiltight Raintight

Description

These connectors are used with liquidtight flexible metal conduit to provide a dependable connection and are suitable for use in wet locations. They include wire mesh strain relief to ensure integrity of connections subjected to flexure, vibration, motion or strain.

Appleton® Liquid Tight Conduit Connector, Insulated Throat Oiltight Raintight, Series: STB, 1-1/2 in, Cable Openings: 1.87 to 1.9 in, Straight, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Triple Coated, 2.25 in L x 2.63 in H

Application

Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment Installation

Standards

UL 514B | UL File No. E14814 | CSA C22.2 No. 18.3 | CSA 065178 | Class I, Div 2

Features

Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
Stainless steel wire mesh prevents pull out of flexible conduit from fitting and alleviates flexing stress at liquidtight connection
Suitable for wet locations
Full, machined tapered threads (NPT)
Chromate/epoxy powder coated/zinc electroplated finish

Specifications

Angle:	Straight
Cable Openings:	1.87 to 1.9 in
Country of Origin:	MX
Dimensions:	2.25 in L x 2.63 in H
Finish:	Triple Coated
Material:	Malleable Iron
Series:	STB
Suitable For Use With:	Liquid Tight Flexible Metallic Conduit
Trade Size:	1-1/2 in
