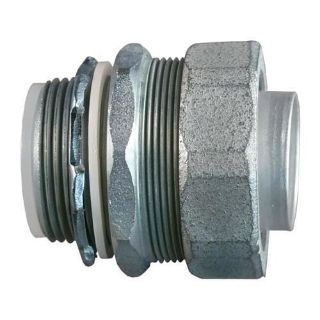

Picture of STB200 APN
Actual Product May Vary From Image

STB200 APN

Appleton® STB-200 Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 2 in Trade, Straight, Malleable Iron, Triple Coated
Manufacturer: Appleton
Manufacturer part number: STB-200
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
2 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$82.29

Product Details

Brand Name

Appleton®

Type

Liquid Tight Oiltight Raintight

Description

Appleton® Conduit Connector, Liquid Tight Oiltight Raintight, Series: STB, 2 in, Straight, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Triple Coated, 2.5 in L x 3.19 in H

Application

Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment Installation

Standards

UL 514B | UL File No. E14814 | CSA C22.2 No. 18.3 | CSA 065178 | Class I, Div 2 | RoHS Compliant

Features

  • Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
  • Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
  • Polypropylene sealing ring with locknut standard
  • Full, machined tapered threads (NPT)
  • Compact design with small turning radius
  • Seals out oil, water, dust, dirt and fumes
  • Suitable for wet locations
  • Chromate/epoxy powder coated/zinc electroplated finish

Specifications

Angle:Straight
Country of Origin:MX
Dimensions:2.5 in L x 3.19 in H
Finish:Triple Coated
Material:Malleable Iron
Series:STB
Suitable For Use With:Liquid Tight Flexible Metallic Conduit
Trade Size:2 in
