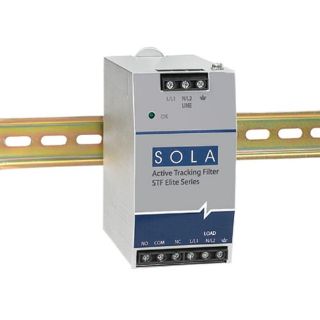

STFE100-10N SHD

Name: STFE100-10N SHD
Brand: SolaHD (Emerson)
SKU: STFE100-10N SHD
Price: 517.72 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

SolaHD (Emerson)

Manufacturer part number:

STFE100-10N

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$517.72 / EA

Description

Type

STFE Elite Series - Active Tracking Filters with Surge Protection

Description

STFE Elite Series Active Tracking Filers with Surge Protection, Input Voltage: 120 V (0-150 Vms), Line Frequency: 47-63 Hz, Amps: 10.0, Min Wire Size: 20 AWG

Application

Control Panels, Factory Automation Installations, Point of Use Industrial Equipment, Programmable Logic Controllers, Dedicated Industrial and Machine Tools Equipment

Standards

cULus Recognized Component: UL 1449, 3rd Edition, Type 4 locations, UL 1283, CSA C22.2 No. 8; CE rated: EN 61643-11:2002, RoHS Compliant

Features

Series connected DIN Rail mounted filter, Durable metal mount clip, UL Listed surge current capacity -45,000 Amps, Transient protection in all modes (L-N, L-G, and N-G), Single phase applications up to 20 Amp, Operating temperature from -40 DEG C to +50 DEG C, Screw terminal connections, Reliable and convenient screw clamp connections accept 10-16 AWG wire and meet IP20 specifications for ingress protection, LED status indication, Form C contact for remote monitoring

Specifications

Connector:	Screw Terminal Connections, 10-16 AWG, IP20
Country of Origin:	MX
Enclosure:	Metal
Frequency Rating:	47-63 HZ
Height:	4.88 IN
Input:	240, Single Phase V
Length:	4.56 IN
Mounting:	DIN Rail
Style:	DIN Rail Mount
Width:	2.56 IN
