STFV025-24L SHD

Name: STFV025-24L SHD
Brand: SolaHD (Emerson)
SKU: STFV025-24L SHD
Price: 295.83 USD
Availability: OutOfStock

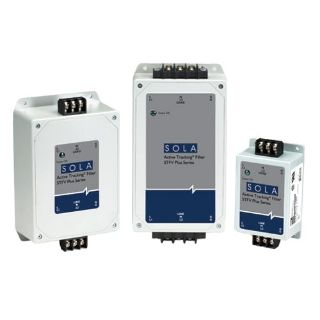

Actual Product May Vary From Image

Product Details

Manufacturer:

SolaHD (Emerson)

Manufacturer part number:

STFV025-24L

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$295.83 / EA

Description

Type

STFV Plus Series - Active Tracking Filtering with Surge Protection

Description

STFV Series Active Tracking Filter With Surge Protection, CSA Certified, CSA C22.2 No.8, UL Recognized Component, UL1283, Amps 2.5, Min Wire Size AWG 26, Screw Size #6, Fuse/Circuit Breaker Ampacity: Suggested 2.5A, Max. 3.125A, Single Phase, (240Vac)

Application

Branch and Control Panels, Factory Automation Installations, Point of Use Industrial Service Equipment, Programmable Logic Controllers, Dedicated Industrial and Machine Tools, Telecommunications and IT Equipment

Standards

Features

Non degrading, series filter/TVSS technology for total durability. UL surge current capacity 25,000 amps. High impact plastic case, epoxy encapsulated enclosure. Transient protection in all modes (L-N, L-G, and N-G). Single phase applications up to 30 amp. Operating temperature from minus 40 deg C to plus 60 deg C. Hardwired connection. LED power indication. Ten year limited warranty.

Specifications

Amperage Rating:	2.5 Amps
Connection:	#6 Screw, Minimum Wire Size 26 AWG
Country of Origin:	MX
Environmental Conditions:	Operating Humidity 0 to 95 percent Non-condensing
Frequency Rating:	50/60 HZ
Material:	High impact plastic case, vacuum impregnated magnetics, epoxy encapsulated
Mounting:	Series/Panel Mount, Mounting Flange
Operating Temperature:	minus 40 deg C to plus 60 deg C at full load. Derate Linearly to 60 percent at plus 70 deg C
Phase:	Single Phase (2 wire plus ground)
Response Time:	Less than 5 ns
Short Circuit Rating:	Circuit Breaker Ampacity, Suggest 2.5, Maximum 3.125 Amps
Size:	4.0 x 2.88 x 1.81 IN
Type of Indicators:	Less than 5 ns
Voltage Rating:	240 Vac

Resources

Spec Sheet
