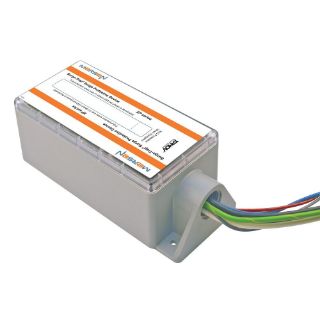

STXP05S1004XA FER

Name: STXP05S1004XA FER
Brand: Mersen
SKU: STXP05S1004XA FER
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

STXP05S1004XA

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Mersen

Type

Surge-Trap Type 1 & 2

Description

The Surge-Trap? Type 1 XP Series offers advanced performance over other products. The XP meets requirements for UL1449 Third Edition and has been designed to be as compact as possible while offering advanced protection. The XP features TPMOV? technology inside making it the safest product available. Installation can be done on the line or load side of a panel. The XP is the perfect fit from service entrance all the way down to an important machine specific control panel. 480 Volts 3P Delta system type .

Application

AC Distribution Power supplies Drive Protection Fire Alarms Control Panels Telecommunications Residential IT / Data centers

Standards

UL 1449 Third Edition, (cUL Type 2 optional) UL File VZCA.E210793 RoHS Compliant IEC 61643 CE Burn-In tested prior to shipment UL 96A lighting protection master label

Features

UL 1449 Third Edition Listed, Type 1 SPD (Sept. 2009) Can be installed line-side or load-side of main disconnect 20kA Nominal discharge current 200kA SCCRs (most models) UL 96A Lightning Protection Master Label compliant (@20kA, In) Pre-wired with 3’ (1m) of #10 AWG conductor Voltage specific design – highly configurable All MOV suppression elements monitored NEMA 4X enclosure Ten-year warranty Phase-loss monitoring (toggles LED and dry contacts)

Specifications

Country of Origin:	US
Mounting:	Screw
Short Circuit Rating:	200 kA
Sub Brand:	Surge-Trap®
Type of Indicators:	LED
Voltage Rating:	480 VAC

Resources

Brochure Spec Sheet
