STXT02S2004XA FER

Name: STXT02S2004XA FER
Brand: Mersen
SKU: STXT02S2004XA FER
Availability: OutOfStock

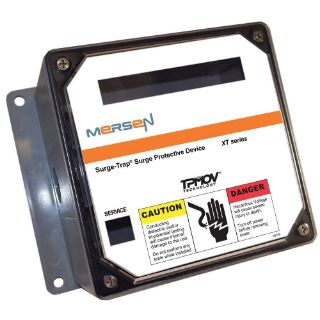

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

STXT02S2004XA

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Mersen

Type

Surge-Trap Type 1 & 2

Description

The Surge-Trap? Type 1 XT Series offers Advanced Technology. The XT features TPMOV? technology inside making it the safest product available. With line or load side installation flexibility, this unit is a great fit from the service entrance all the way down to each distribution and/or branch panel. 120/208 Volts 3P Wye system type 200 kA surge rating with alarm .

Application

Service Entrance AC Distribution Power supplies Drive Protection Large Control Panels Telecommunications IT / Data centers

Standards

UL 1449 Third Edition, cUL, UL 1283 R/C UL File: VZCA.E210793 RoHS Compliant IEC 61643 CE Burn-In tested prior to shipment UL 96A lighting protection master label

Features

UL 1449 Third Edition Listed (Sept 2009) Type 1 SPD – All UL required OCP & safety coordination included inside Can be installed line-side or load-side of main disconnect 20kA Nominal discharge current 200kA SCCR (most models) UL 96A Lightning Protection Master Label compliant (@20kA, In) NEMA 4X polycarbonate enclosure – UL 746C(f1) & UL 94-5VA TPMOV®, Technology Inside All MOV suppression elements monitored Filtering - AC sinewave tracking filter with EMI/RFI filtering up to -50dB from 10khz to 100mhz Phase-loss monitoring (toggles LED and dry contacts) Ten-year Warranty

Specifications

Connection:	Box
Country of Origin:	US
Mounting:	Screw
Short Circuit Rating:	200 kA
Sub Brand:	Surge-Trap®
Type of Indicators:	LED
Voltage Rating:	208 VAC

Resources

Brochure Spec Sheet
