STXT240S10A FER

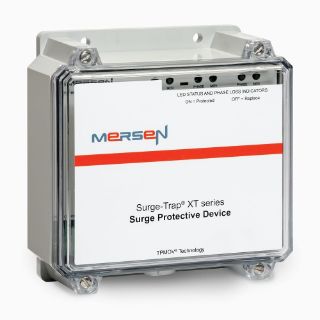

Picture of STXT240S10A FER
Actual Product May Vary From Image

Product Details

Manufacturer:
Mersen
Manufacturer part number:
STXT240S10A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,577.34 / EA

Description

Brand Name

Mersen

Type

Split Phase

Description

Mersen Surge-Trap® Surge Protective Device, Split Phase, Series: STXT, 120/240 VAC, 50/60 Hz, 3 Wires, 200 kA Short Circuit Current Rating, 100 kA Peak Surge, 20 kA Nominal Discharge, Modes of Protection: L-G/L-L/L-N/N-G, LED/Remote Audible Alarm Indicator, Environmental Conditions: -40 to 85 deg C Operating Temperature, -40 to 85 deg C Storage Temperature, NEMA 4X, Panel/Wall Mount, Box Terminal, Polycarbonate, 7.4 in L x 7.08 in W x 3.68 in D

Application

For indoor/outdoor and type 1 or 2 SPD applications

Standards

RoHS Compliant | ANSI/UL 1449 File No. E210793 | ANSI/IEEE C62.41.1, C62.41.2, C62.45 | UL96A | CSA C22.2 Class 9091-02 File No. 162842 | ANSI/IEEE C62.41.1, C62.41.2, C62.45 | UL94-5VA Flammability Rating

Features

  • Designed with the industry leading MERSEN TPMOV® technology (internally fused)
  • Premium 200 kA surge capacity for longer life and higher single impulse withstand
  • Includes EMI/RFI filter for cleaner attenuation
  • LED status indicator (ON = Good, OFF = Replace)
  • LED phase loss indicators (ON = Operational, OFF = maintenance Required)
  • NEMA 4X enclosure for outdoor or indoor use
  • Mounting hub and mounting feet for installation flexibility

Includes

EMI/RFI Filter

Specifications

Country of Origin:MX
Dimensions:7.4 in L x 7.08 in W x 3.68 in D
Electrical Ratings:120/240 VAC
Enclosure Type:NEMA 4X
Environmental Conditions:-40 to 85 deg C Operating Temperature, -40 to 85 deg C Storage Temperature
Frequency Rating:50/60 Hz
Indicator Type:LED/Remote Audible Alarm
Material:Polycarbonate
Modes of Protection:L-G/L-L/L-N/N-G
Mounting Type:Panel/Wall
Nominal Discharge Current:20 kA
Number of Wires:3
Peak Surge Current:100 kA
Series:STXT
Short Circuit Current Rating:200 kA
Terminal Type:Box
