SU158-6 CPLG 1-3/4X2-7/16 KWBE LOV

Name: SU158-6 CPLG 1-3/4X2-7/16 KWBE LOV
Brand: Lovejoy
SKU: SU158-6 CPLG 1-3/4X2-7/16 KWBE LOV
Availability: OutOfStock

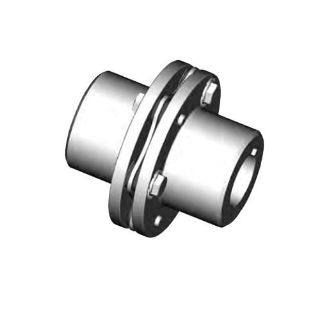

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

69790499329

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Lovejoy®

Type

Type SU Disc

Description

The SU-type coupling has a single flex plane and is comprised of a single disc pack kit with two hubs. It is suitable for angular and axial misalignment only. Two SU couplings are often combined with a shaft to make a floating shaft coupling. The shaft can be hollow for long lightweight floating shaft couplings.

Lovejoy® Industrial Coupling, Type SU Disc, Series: SU-6 Series, 1-3/4 in, 2-7/16 in Bore, 6.22 in OD, 5.96 in Overall Length, Standard Hub, 3.86 in Dia Hub, 2.76 in Length Through Bore, 17700 in-lb Nominal/35400 in-lb Maximum Torque, 4920 rpm Unbalanced/12300 rpm Balanced Maximum, 0.441 in Shaft Connection, -40 to 450 deg F, Steel

Standards

Features

Unitized disc pack
Infinite life when properly sized and aligned
Torsionally rigid without any back lash
No need for lubrication or maintenance
No wearing parts and high resistance to harsh environmental conditions

Includes

Disc Pack Kit, (6) Bolts and (2) Hubs

Specifications

Bore Diameter:	1-3/4 in, 2-7/16 in
Country of Origin:	US
Hub Size:	3.86 in Dia
Hub Type:	Standard
Length Through Bore:	2.76 in
Material:	Steel
Maximum Speed:	4920 rpm Unbalanced/12300 rpm Balanced
Outside Diameter:	6.22 in
Overall Length:	5.96 in
Series:	SU-6 Series
Shaft Connection:	0.441 in
Temperature Rating:	-40 to 450 deg F
Torque Rating:	17700 in-lb Nominal/35400 in-lb Maximum
