Actual Product May Vary From Image

SVL1024480 SHD

Name: SVL1024480 SHD
Brand: SolaHD (Emerson)
SKU: SVL1024480 SHD
Price: 177.58 USD
Availability: InStock

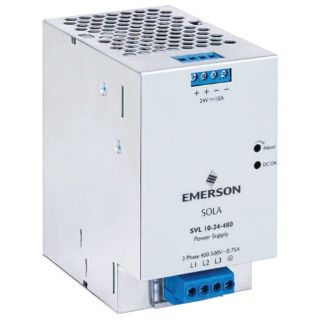

DIN P/S SVL 240W 24V 10A 3ph C1D2

Manufacturer: SolaHD (Emerson)

Manufacturer part number: SVL-10-24-480

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
2	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$177.58

Qty:

Product Details

Brand Name

SolaHD

Type

SVL Essential Din Rail Series

Description

SVL Essential Din Rail Series, Nominal Output Voltage: 24VDC, Nominal Output Current: 10A, Max. Power: 240W, Frequency Rating: 50/60Hz, Three-Phase, DIN Rail Mounting

Application

Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines;

Standards

UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1; UL Recognized Component, ITE for US and Canada: UL 62368-1/CSA C22.2 No. 62368-1, UL 60950-1/CSA C22.2 No. 60950-1; CE: IEC/EN60950-1, IEC/EN62368-1; cCSAus ANSI/ISA-12.12.01/CSA 213 Class I Div 2 Groups A, B, C, D

Features

Class I Div 2, 3-phase input, 2 year warranty

Specifications

Amperage Rating:	10 A
Country of Origin:	TH
Frequency Rating:	50/60 Hz
Fuse Rating:	Internally Fused
Mounting:	DIN Rail
Phase:	3
Sub Brand:	Sola
Voltage Rating:	24 VDC
Wattage:	240 W

Resources

Spec Sheet
