Actual Product May Vary From Image

SVL4024480 SHD

Name: SVL4024480 SHD
Brand: SolaHD (Emerson)
SKU: SVL4024480 SHD
Price: 414.37 USD
Availability: InStock

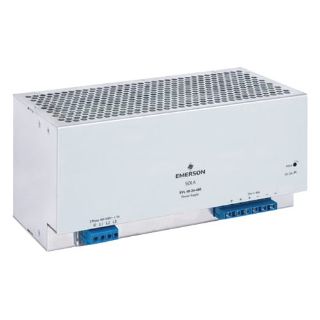

DIN P/S SVL 960W 24V 40A 3ph

Manufacturer: SolaHD (Emerson)

Manufacturer part number: SVL-40-24-480

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$414.37

Qty:

Product Details

Brand Name

SolaHD

Type

SVL Essential Din Rail Series

Description

SVL Essential Din Rail Series, Nominal Output Voltage: 24VDC, Nominal Output Current: 40A, Max. Power: 960W, Frequency Rating: 50/60Hz, Three-Phase, DIN Rail Mounting

Application

Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines;

Standards

UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1; UL Recognized Component, ITE for US and Canada: UL 62368-1/CSA C22.2 No. 62368-1, UL 60950-1/CSA C22.2 No. 60950-1; CE: IEC/EN60950-1, IEC/EN62368-1

Features

Class I Div 2, 3-phase input, 2 year warranty

Specifications

Amperage Rating:	40 A
Country of Origin:	TH
Frequency Rating:	50/60 Hz
Fuse Rating:	Internally Fused
Mounting:	DIN Rail
Phase:	3
Sub Brand:	Sola
Voltage Rating:	24 VDC
Wattage:	960 W

Resources

Spec Sheet

Product Tags

Sola SVL (14)
