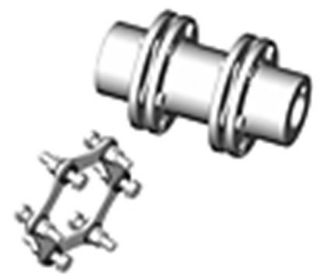

Picture of SX228-6 HUB 2-3/8 5/8X5/16KW LOV
Actual Product May Vary From Image

SX228-6 HUB 2-3/8 5/8X5/16KW LOV

Lovejoy® 69790414395 Type SX-6 Standard Disc Coupling Hub With Keyway, 228-6 Coupling, 2-3/8 in Dia Bore, 8.98 in Dia Flange, 5.51 in Dia Hub, AISI 1045 Steel
Manufacturer: Lovejoy
Manufacturer part number: 69790414395
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Lovejoy®

Type

Type SX-6 Standard

Description

The SX-6 Type is a standard coupling with two hubs, a spacer and two disc pack kits. The coupling has two flex planes (one at each disc pack) so it can accommodate parallel misalignment by the angular misalignment in each disc pack. This configuration will also accommodate axial misalignment within the specified limits.
Lovejoy® Disc Coupling Hub, Type SX-6 Standard, 228-6 Coupling, 2-3/8 in Bore, 8.98 in Diameter Flange, 5.51 in Diameter Hub, 5/8 in W x 5/16 in D Keyway, 3400 rpm Unbalanced/8500 rpm Balanced Maximum, 3.94 in Length Through Bore, AISI 1045 Steel, Metallic

Application

For industrial disc couplings

Standards

ECCN EAR99

Features

  • Unitized disc pack
  • Infinite life when properly sized and aligned
  • Accommodates angular, axial and parallel misalignment
  • Torsionally rigid without any back lash
  • No need for lubrication or maintenance
  • No wearing parts and high resistance to harsh environmental conditions
  • Without setscrew

Specifications

Bore Diameter:2-3/8 in
Country of Origin:US
Coupling Size:228-6
Finish:Metallic
Flange Diameter:8.98 in
Hub Diameter:5.51 in
Keyway Size:5/8 in W x 5/16 in D
Length Through Bore:3.94 in
Material:AISI 1045 Steel
Maximum Speed:3400 rpm Unbalanced/8500 rpm Balanced
