SX255-6 HUB 70MM SLD1500 *LTB LOV

Name: SX255-6 HUB 70MM SLD1500 *LTB LOV
Brand: Lovejoy
SKU: SX255-6 HUB 70MM SLD1500 *LTB LOV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

69790411828

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Lovejoy®

Type

Type SX-6 Standard

Description

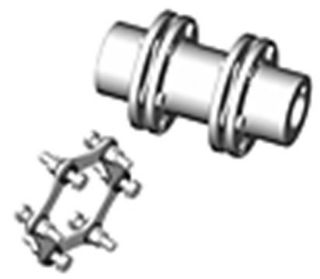

The SX-6 Type is a standard coupling with two hubs, a spacer and two disc pack kits. The coupling has two flex planes (one at each disc pack) so it can accommodate parallel misalignment by the angular misalignment in each disc pack. This configuration will also accommodate axial misalignment within the specified limits.

Lovejoy® Disc Coupling Hub, Type SX-6 Standard, 255-6 Coupling, 70 mm Bore, 255 mm Diameter Flange, 155 mm Diameter Hub, 3080 rpm Unbalanced/7700 rpm Balanced Maximum, 67.31 mm Length Through Bore, AISI 1045 Steel, Metallic

Application

For industrial disc couplings

Standards

ECCN EAR99

Features

Unitized disc pack
Infinite life when properly sized and aligned
Accommodates angular, axial and parallel misalignment
Torsionally rigid without any back lash
No need for lubrication or maintenance
No wearing parts and high resistance to harsh environmental conditions
Without keyway and setscrew

Specifications

Bore Diameter:	70 mm
Country of Origin:	US
Coupling Size:	255-6
Finish:	Metallic
Flange Diameter:	255 mm
Hub Diameter:	155 mm
Length Through Bore:	67.31 mm
Material:	AISI 1045 Steel
Maximum Speed:	3080 rpm Unbalanced/7700 rpm Balanced
