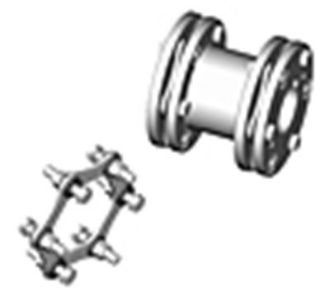

SXC132-6 HUB RSB LOV

Name: SXC132-6 HUB RSB LOV
Brand: Lovejoy
SKU: SXC132-6 HUB RSB LOV
Price: 399.28 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Lovejoy

Manufacturer part number:

69790492024

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$399.28 / EA

Description

Brand Name

Lovejoy®

Type

Type SXC-6 Rough Stock Bore Standard

Description

The SXC-6 Type is the standard 6 bolt coupling with two hubs, two disc packs and a spacer. The hubs can both be turned inward to accommodate close coupled applications or one hub can be turned outward to accommodate additional BSE's (shaft separation). The coupling has two flex planes (one at each disc pack) so it can accommodate parallel misalignment by the angular misalignment in each disc pack. This configuration will also accommodate axial misalignment within the specified limits.

Lovejoy® Disc Coupling Hub, Type SXC-6 Rough Stock Bore Standard, 132-6 Coupling, 2.06 in Bore, 5.2 in Diameter Flange, 2.79 in Diameter Hub, 5840 rpm Unbalanced/14600 rpm Balanced Maximum, 2.36 in Length Through Bore, AISI 1045 Steel, Metallic

Application

For close coupled industrial disc couplings

Standards

ECCN EAR99

Features

Unitized disc pack
Infinite life if properly aligned
Torsionally rigid without any back lash
No need for lubrication or maintenance
No wearing parts and high resistance to harsh environmental conditions
Can be combined with SU/SX hub for increased bore capacity
Without setscrew

Specifications

Bore Diameter:	2.06 in
Country of Origin:	US
Coupling Size:	132-6
Finish:	Metallic
Flange Diameter:	5.2 in
Hub Diameter:	2.79 in
Length Through Bore:	2.36 in
Material:	AISI 1045 Steel
Maximum Speed:	5840 rpm Unbalanced/14600 rpm Balanced
