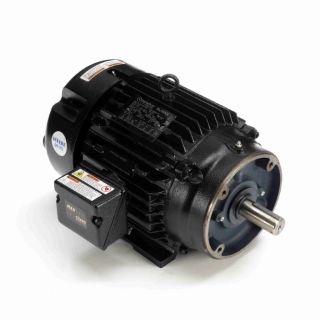

SY008 MAR

Name: SY008 MAR
Brand: Marathon Electric Motors
SKU: SY008 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

SY008

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

213TPFSA10096

Features

Ultra Efficient™ Premium-Plus exceeds NEMA Premium® (IE4) Class H MAX GUARD® insulation system Cast iron construction for rigidity and reduced vibration Normally closed thermostats (one per phase, Class F) High power density, low weight design, Optional terminal block shown Will become build-up item when current stock is gone

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	20.16
CE:	Y
Connection Drawing Number:	A-EE7300T
Country of Origin:	United States of America
CSA:	Y
Current:	9.4
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	93
Electrical Type:	AC Permament Magnet
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	9.12
Frame Material:	Cast Iron
Frame Size:	213
Frame Suffix:	TC
Frame Type:	213TC
Frequency:	150
Harmonized Tariff Code:	8501.52.4000
HP:	7.50
Insulation Class:	H
IP Code:	54
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	No Design Code
Number of Poles:	10
Number of Speeds:	1
ODE Bearing Size:	6208
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS89934-912
Phases:	3
Power Factor:	80
Power Rating (HP):	7.50
Power Rating (kW):	5.6
Resistance Main:	0
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	1 3
Shaft Extension:	3.12
Shaft Type:	T
Speed:	1800
Speed Max:	1800
Starting Type:	Inverter Only
Type of Overload Protector:	No
UL:	Recognized
Voltage:	460
