SY010 MAR

Name: SY010 MAR
Brand: Marathon Electric Motors
SKU: SY010 MAR
Price: 4,506.51 USD
Availability: OutOfStock

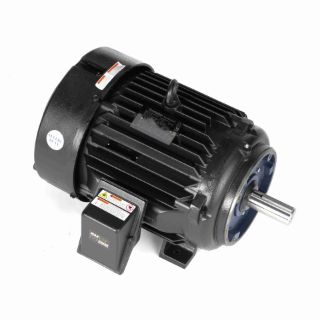

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

SY010

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

$4,506.51 / EA

Description

Alternate Supplier #

254TPFSA10088

Features

Ultra Efficient™ Premium-Plus exceeds NEMA Premium® (IE4) Class H MAX GUARD® insulation system Cast iron construction for rigidity and reduced vibration IP54 ingress protection (IP55 or IP56 available) Premium Severe Duty, TEFC Normally closed thermostats (one per phase, Class F) High power density, low weight design, Optional terminal block shown Provisions for optional “BCP” (Bearing Current Protection)

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	25.68
CE:	Y
Connection Drawing Number:	A-EE7300
Country of Origin:	Mexico
CSA:	Y
Current:	18.0
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	94
Electrical Type:	AC Permament Magnet
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	12.25
Frame Material:	Cast Iron
Frame Size:	254
Frame Suffix:	TC
Frame Type:	254TC
Frequency:	120
Harmonized Tariff Code:	8501.52.4000
HP:	15
Insulation Class:	H
IP Code:	54
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	No Design Code
Number of Poles:	8
Number of Speeds:	1
ODE Bearing Size:	6210
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS203152-1225
Phases:	3
Power Factor:	80
Power Rating (HP):	15
Power Rating (kW):	11.2
Resistance Main:	0
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	1 5
Shaft Extension:	3.75
Shaft Type:	T
Speed:	1800
Speed Max:	1800
Starting Type:	Inverter Only
Type of Overload Protector:	No
UL:	Recognized
Voltage:	460
