SY011 MAR

Name: SY011 MAR
Brand: Marathon Electric Motors
SKU: SY011 MAR
Price: 4,939.13 USD
Availability: OutOfStock

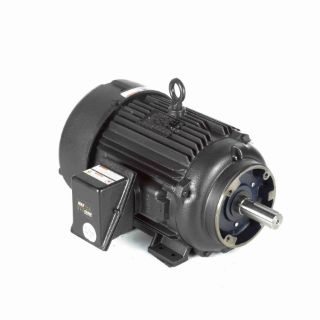

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

SY011

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

$4,939.13 / EA

Description

Alternate Supplier #

256TPFSA10087

Features

Ultra Efficient™ Premium-Plus exceeds NEMA Premium® (IE4) Class H MAX GUARD® insulation system Cast iron construction for rigidity and reduced vibration Normally closed thermostats (one per phase, Class F) High power density, low weight design, Optional terminal block shown

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	25.68
CE:	Y
Connection Drawing Number:	A-EE7300T
Country of Origin:	Mexico
CSA:	Y
Current:	24.0
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	94.5
Electrical Type:	AC Permament Magnet
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	12.25
Frame Material:	Cast Iron
Frame Size:	256
Frame Suffix:	TC
Frame Type:	256TC
Frequency:	120
Harmonized Tariff Code:	8501.52.4000
HP:	20
Insulation Class:	H
IP Code:	54
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	No Design Code
Number of Poles:	8
Number of Speeds:	1
ODE Bearing Size:	6210
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS203152-1225
Phases:	3
Power Factor:	80
Power Rating (HP):	20
Power Rating (kW):	14.9
Resistance Main:	0
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	1 5
Shaft Extension:	3.75
Shaft Type:	T
Speed:	1800
Speed Max:	1800
Starting Type:	Inverter Only
Type of Overload Protector:	No
UL:	Recognized
Voltage:	460
