SY035 MAR

Name: SY035 MAR
Brand: Marathon Electric Motors
SKU: SY035 MAR
Availability: OutOfStock

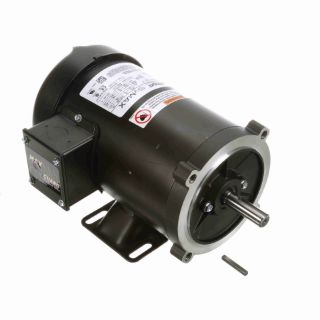

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

SY035

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056PFRA10161

Features

Class F MAX GUARD® insulation system Operational to 20:1 Constant Torque open-loop (1000:1 closed-loop) IP43 ingress protection (IP54 or IP55 available) High power density, low weight design

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	11.70
CE:	Y
Connection Drawing Number:	EE7308
Country of Origin:	Mexico
CSA:	Y
Current:	5.1/2.6
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	89.5
Electrical Type:	AC Permament Magnet
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	C
Frame Type:	56C
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	2
Insulation Class:	F
IP Code:	43
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	No Design Code
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	606-0042-005
Phases:	3
Power Factor:	84
Power Rating (HP):	2
Power Rating (kW):	1.5
Resistance Main:	0
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	0.625
Shaft Extension:	2.06
Shaft Type:	NEMA 56
Speed:	1140
Speed Max:	1140
Starting Type:	Inverter Only
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
