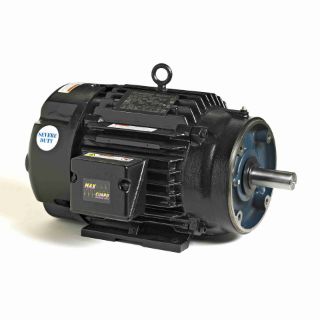

SY036 MAR

Name: SY036 MAR
Brand: Marathon Electric Motors
SKU: SY036 MAR
Price: 2,287.62 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

SY036

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

$2,287.62 / EA

Description

Alternate Supplier #

182TPFRB10181

Features

Premium Severe Duty, TEFC Normally closed thermostats (one per phase, Class F) High power density, low weight design Provisions for optional “BCP” (Bearing Current Protection)

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	16.42
CE:	N
Connection Drawing Number:	A-EE7308T
Country of Origin:	Mexico
CSA:	N
Current:	7.0/3.5
DE Bearing Size:	6207
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	93
Electrical Type:	AC Permament Magnet
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	8.
Frame Material:	Rolled Steel
Frame Size:	182
Frame Suffix:	TC
Frame Type:	182TC
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	3
Insulation Class:	H
IP Code:	43
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	No Design Code
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	036225-800
Phases:	3
Power Factor:	86
Power Rating (HP):	3
Power Rating (kW):	2.2
Resistance Main:	0
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	1 1
Shaft Extension:	2.62
Shaft Type:	T
Speed:	1200
Speed Max:	1200
Starting Type:	Inverter Only
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
