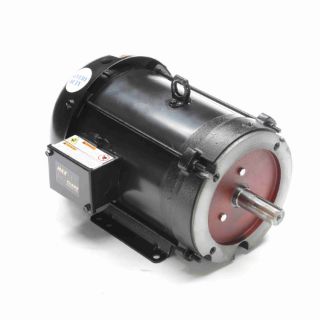

SY066 MAR

Name: SY066 MAR
Brand: Marathon Electric Motors
SKU: SY066 MAR
Price: 1,811.34 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

SY066

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

$1,811.34 / EA

Description

Alternate Supplier #

182TPFRB10194

Features

Ultra Efficient™ Premium-Plus exceeds NEMA Premium® (IE4) Class H MAX GUARD® insulation system Cast iron construction for rigidity and reduced vibration IP54 ingress protection (IP55 or IP56 available) Premium Severe Duty, TEFC Normally closed thermostats (one per phase, Class F) High power density, low weight design Provisions for optional “BCP” (Bearing Current Protection) Requires Drive for Operation

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	16.42
CE:	N
Connection Drawing Number:	A-EE7308T
Country of Origin:	Mexico
CSA:	N
Current:	6.6/3.3
DE Bearing Size:	6207
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	91.4
Electrical Type:	AC Permament Magnet
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	8.
Frame Material:	Rolled Steel
Frame Size:	182
Frame Suffix:	TC
Frame Type:	182TC
Frequency:	90
Harmonized Tariff Code:	8501.52.4000
HP:	3
Insulation Class:	F
IP Code:	43
Max Ambient:	40°C
Motor Orientation:	Horizontal Or Shaft Down
Mounting Type:	Bolt-on Base
NEMA Design:	No Design Code
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	036316-800
Phases:	3
Power Factor:	85
Power Rating (HP):	3
Power Rating (kW):	2.2
Resistance Main:	0
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	1 1
Shaft Extension:	2.75
Shaft Type:	T
Speed:	1800
Speed Max:	1800
Starting Type:	Inverter Only
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
