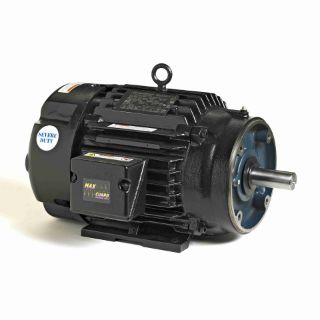

SY068 MAR

Name: SY068 MAR
Brand: Marathon Electric Motors
SKU: SY068 MAR
Price: 2,353.12 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

SY068

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

$2,353.12 / EA

Description

Alternate Supplier #

213TPFRB10230

Features

Premium Severe Duty, TEFC Normally closed thermostats (one per phase, Class F) High power density, low weight design Provisions for optional “BCP” (Bearing Current Protection)

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	19.47
CE:	N
Connection Drawing Number:	EE7308T
Country of Origin:	Mexico
CSA:	Y
Current:	16.6/8.3
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	94.1
Electrical Type:	AC Permament Magnet
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	9.65
Frame Material:	Rolled Steel
Frame Size:	213
Frame Suffix:	TC
Frame Type:	213TC
Frequency:	90
Harmonized Tariff Code:	8501.52.4000
HP:	7.50
Insulation Class:	F
IP Code:	43
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Bolt-on Base
NEMA Design:	No Design Code
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6206
ODE Bearing Type:	Ball
Outline Drawing Number:	036394-965
Phases:	3
Power Factor:	88
Power Rating (HP):	7.50
Power Rating (kW):	5.6
Resistance Main:	1.34
Rotation:	Reversible
Service Factor:	1
Shaft Diameter (IN):	1 3
Shaft Extension:	3.12
Shaft Type:	T
Speed:	1800
Speed Max:	1800
Starting Type:	Inverter Only
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
