SY069 MAR

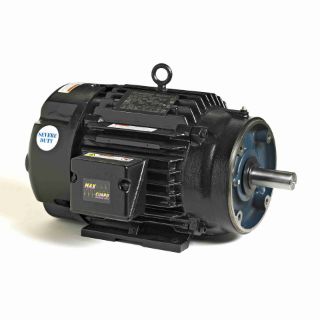

Picture of SY069 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
SY069
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,497.06 / EA

Description

Alternate Supplier #

215TPFRB10219

Features

Premium Severe Duty, TEFC Normally closed thermostats (one per phase, Class F) High power density, low weight design Provisions for optional “BCP” (Bearing Current Protection)

Specifications

Assembly/Box Mounting:F1 ONLY
C Dim (IN):20.97
CE:N
Connection Drawing Number:EE7308T
Country of Origin:Mexico
CSA:Y
Current:24.7/12.4
DE Bearing Size:6309
DE Bearing Type:Ball
Duty:Continuous
Efficiency:94.5
Electrical Type:AC Permament Magnet
Enclosure Type:Totally Enclosed Fan Cooled
Frame Length (IN):11.15
Frame Material:Rolled Steel
Frame Size:215
Frame Suffix:TC
Frame Type:215TC
Frequency:90
Harmonized Tariff Code:8501.52.4000
HP:10
Insulation Class:F
IP Code:43
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Bolt-on Base
NEMA Design:No Design Code
Number of Poles:6
Number of Speeds:1
ODE Bearing Size:6206
ODE Bearing Type:Ball
Outline Drawing Number:036254-1115
Phases:3
Power Factor:85
Power Rating (HP):10
Power Rating (kW):7.5
Resistance Main:0
Rotation:Reversible
Service Factor:1
Shaft Diameter (IN):1 3
Shaft Extension:3.12
Shaft Type:T
Speed:1800
Speed Max:1800
Starting Type:Inverter Only
Type of Overload Protector:No
UL:Recognized
Voltage:230/460

Resources

Engineering DrawingSpec Sheet

Products Specifications

Brand Name
Marathon
Enclosure
TEFC
Horsepower
10 HP
Speed Rating
1800
Type
AC Permanent Magnet
Voltage Rating
230/460 V
