SY3100-5U1 SMC

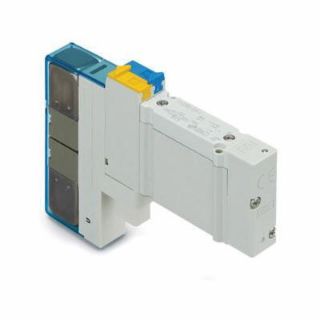

SMC® SY3100-5U1 SY3000 Single Non-Polar Solenoid Valve With Light/Surge Voltage Suppressor, 1/8 in Port, 0.1 to 0.7 MPa Pressure, 2 Positions
Manufacturer: SMC
Manufacturer part number: SY3100-5U1
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 15 0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...
$53.15

Product Details

Brand Name

SMC®

Type

Single Non-Polar

Description

SMC® has improved product performance and reliability with the redesigned SY Series valve. The SY3000 and SY5000 have the same valve width as their predecessors, but the flow has been increased by up to 80%, allowing the valve size to be reduced. A built-in strainer in the pilot valve prevents trouble caused by foreign matter. By using H-NBR seal material for the main valve and seals, ozone-resistance has been improved. Side, top and bottom port/pipe directions are available to allow flexible installation. The SY is available in body ported or base mounted styles, and can be used individually or manifold mounted.
SMC® Solenoid Valve, Single Non-Polar, Series: SY3000, 1/8 in, 0.1 to 0.7 MPa, -10 to 50 deg C, 2 Positions, Media: Air, Pilot Operated Actuator, Die-Cast Zinc Body, H-NBR Seal

Standards

CE Marked | IP67 Rated

Features

  • Air fluid
  • 12/24 VDC coil rated voltage
  • 16 msec or less response time at 0.5 mPa without indicator light and surge voltage suppressor
  • 2-position single function
  • Internal pilot
  • Base mounted
  • Rubber seal
  • Standard pilot valve
  • Standard coil specification
  • 24 VDC solenoid voltage
  • Mounting screw, round head combination screw mounting option

Specifications

Actuator Type:Pilot Operated
Body Material:Die-Cast Zinc
Media:Air
Number of Positions:2
Port Size:1/8 in
Pressure Rating:0.1 to 0.7 MPa
Series:SY3000
Softgoods Material:H-NBR Seal
Temperature Rating:-10 to 50 deg C
