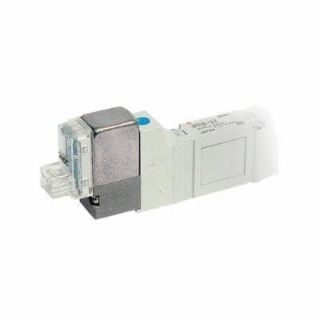

Actual Product May Vary From Image

SY3140-5LOZ SMC

Name: SY3140-5LOZ SMC
Brand: SMC
SKU: SY3140-5LOZ SMC
Price: 44.80 USD
Availability: InStock

SMC® SY3140-5LOZ SY3000 5-Port Single Solenoid Valve With 300 mm Lead Wire, 1/8 in Port, 0.15 to 0.7 MPa Pressure, 4 Ways, 2 Positions

Manufacturer: SMC

Manufacturer part number: SY3140-5LOZ

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
4	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$44.80

Qty:

Product Details

Brand Name

SMC®

Type

5-Port Single

Description

Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The Series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.

SMC® Solenoid Valve, 5-Port Single, Series: SY3000, 1/8 in, 0.15 to 0.7 MPa, -10 to 50 deg C, 4 Ways, 2 Positions, Media: Air, Pilot Operated Actuator, Die-Cast Zinc Body, Rubber Seal, 76.8 mm L x 22 mm W x 53.5 mm H

Standards

CE Marked | cLRus Listed

Features

Air fluid
3/5/6/12/24 VDC/100/110/200/220 VAC rated coil voltage
15 msec or less response time at 0.5 mPa without indicator light and surge voltage suppressor
2-position single function
Internal pilot
Base mounted non plug in single/stacking base, plug in stacking base piping
24 VDC solenoid voltage
L-plug without connector lead wire
Light and surge suppressor
Non-locking push style manual override
Base mounted without sub plate port size
Body ported 4.14 sq-mm effective area
Base mounted 5.4 sq-mm effective area

Specifications

Actuator Type:	Pilot Operated
Body Material:	Die-Cast Zinc
Dimensions:	76.8 mm L x 22 mm W x 53.5 mm H
Media:	Air
Number of Positions:	2
Number of Ways:	4
Port Size:	1/8 in
Pressure Rating:	0.15 to 0.7 MPa
Series:	SY3000
Softgoods Material:	Rubber Seal
Temperature Rating:	-10 to 50 deg C
