Actual Product May Vary From Image

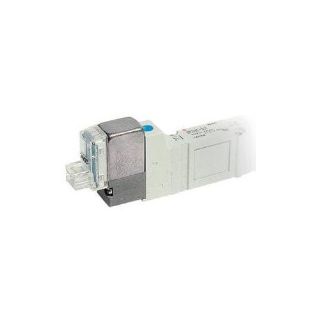

SY3240-5WOZ SMC

Name: SY3240-5WOZ SMC
Brand: SMC
SKU: SY3240-5WOZ SMC
Price: 82.45 USD
Availability: OutOfStock

SMC® SY3240-5WOZ SY3000 5-Port 2-Position Solenoid Valve, 101 psi Pressure, Zinc Body

Manufacturer: SMC

Manufacturer part number: SY3240-5WOZ

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$82.45

Qty:

Product Details

Brand Name

SMC®

Type

5-Port

Description

SMC®, SY3240-5WOZ, 2-Position Solenoid Valve, 5-Port, Series: SY3000, 101 psi Pressure, 14 to 122 deg F, Media: Air, 2-Position Actuator, Zinc Body, Rubber Softgoods, 58 mm H x 22 mm W x 106.8 mm L Dimensions

Standards

RoHS Compliant

Features

Fluid, air Operating pressure range (internal pilot) 0.1 - 0.7MPa
external pilot is 100kPa to 0.7MPa
external pilot, pilot pressure range form 0.25 - 0.7MPa
Effective area mm sq (Cv) body ported 10.6 (0.59), base mounted 12.6 (0.7)
Coil rated voltage 3, 5, 6, 12, 24VDC; 100, 110, 200, 220VAC
Response time (0.5MPa) with o indicator light and surge voltage suppressor 32ms or less
Ambient and fluid temperature 50 deg C

Specifications

Actuator Type:	2-Position
Body Material:	Zinc
Country of Origin:	JP
Dimensions:	58 mm H x 22 mm W x 106.8 mm L
Media:	Air
Pressure Rating:	101 psi
Series:	SY3000
Softgoods Material:	Rubber
Temperature Rating:	14 to 122 deg F

Customers who bought this item also bought

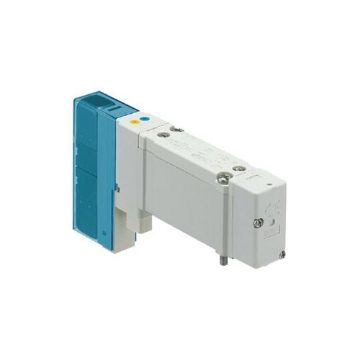

SY5200-5U1 SMC
