SY5120-5LZ-C6 SMC

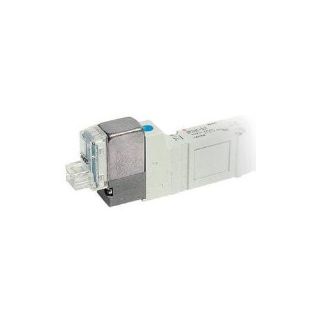

Picture of SY5120-5LZ-C6 SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
SY5120-5LZ-C6
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$55.60 / EA

Description

Brand Name

SMC®

Type

5-Port

Description

SMC®, SY5120-5LZ-C6, 2-Position Solenoid Valve, 5-Port, Series: SY5000, 145 psi Pressure, 14 to 122 deg F, Media: Air, 2-Position Actuator, Aluminum Body, Rubber Softgoods, 45.3 mm H x 15.8 mm W x 95.8 mm L Dimensions

Standards

RoHS Compliant

Features

  • Fluid, air Operating pressure range (internal pilot) 0.1 - 0.7MPa
  • external pilot is 100kPa to 0.7MPa
  • external pilot, pilot pressure range form 0.25 - 0.7MPa
  • Effective area mm sq (Cv) body ported 10.6 (0.59), base mounted 12.6 (0.7)
  • Coil rated voltage 3, 5, 6, 12, 24VDC; 100, 110, 200, 220VAC
  • Response time (0.5MPa) with o indicator light and surge voltage suppressor 32ms or less
  • Ambient and fluid temperature 50 deg C

Specifications

Actuator Type:2-Position
Body Material:Aluminum
Country of Origin:US
Dimensions:45.3 mm H x 15.8 mm W x 95.8 mm L
Media:Air
Pressure Rating:145 psi
Series:SY5000
Softgoods Material:Rubber
Temperature Rating:14 to 122 deg F
